| 设备适用范围 | Applicable scope of equipment |

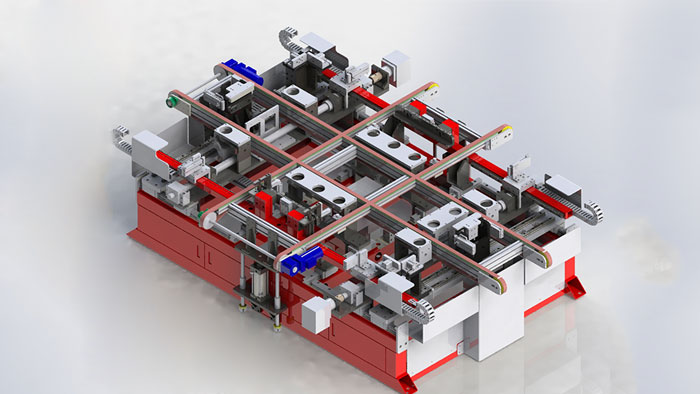

| 产品型号/?Model | JYL-ZKJ-03 |
| 适用范围?/?Applicable scope | 640 × 982mm 1650 × 992mm 1956 × 992mm 1340 × 982mm |
| 边框组合方式 / Combination mode of frame | 铝合金边框的90°角结合处采用角件连接方式/ Diagonal member based connection for 90° combination part of aluminum alloy frame |
| 角码与辑合金边框的槽处于过盈:配合 / Interference fit between connector and groove in aluminum alloy frame | |
| 输送方式 / Conveying mode | 玻璃面朝下输送 / Keep glass side downward |
| 压合方式 / Press fit | 伺服压边框 / Press frame with servo |
| 功能与特点 | Functions and features |
| 将削边后的组件与长短边框按要求尺寸装配。 | |
| 平面误差≤0.2mm毫米、长边尺寸误差±0.5毫米、短边尺寸误差±0.5奄米、对角尺寸误差≤1.5毫米。 | |
| 漏水孔错位：错位≤0.2mm,组框后间隙：间隙≤0.25mm, 组框段差：段差≤0.25mm | |
| 背板溢胶均匀、连续、无气泡 | |
| 操作方式：人工取放组件边框 | |
| 适用行业通用边框 | |
| 设备运转节拍：≤30秒 | |
